带十字光标的折线图

以下是选择一个数据点时会出现带十字光标的基本折线图示例。

我们在 谷歌图表配置语法 章节中已经看到了用于绘制图表所需的配置。现在，我们来看一个带有十字光标的基本折线图的示例。

配置

我们使用 crosshair 配置设置了十字光标。

Crosshair crosshair = Crosshair.create();
crosshair.setColor("#000000");
crosshair.setTrigger(CrosshairTrigger.SELECTION);
options.setCrosshair(crosshair);

示例

HelloWorld.java

package com.tutorialspoint.client;

import com.google.gwt.core.client.EntryPoint;
import com.google.gwt.user.client.ui.RootPanel;

import com.googlecode.gwt.charts.client.ChartLoader;
import com.googlecode.gwt.charts.client.ChartPackage;
import com.googlecode.gwt.charts.client.ColumnType;
import com.googlecode.gwt.charts.client.DataTable;
import com.googlecode.gwt.charts.client.corechart.LineChart;
import com.googlecode.gwt.charts.client.corechart.LineChartOptions;
import com.googlecode.gwt.charts.client.options.Crosshair;
import com.googlecode.gwt.charts.client.options.CrosshairTrigger;
import com.googlecode.gwt.charts.client.options.HAxis;
import com.googlecode.gwt.charts.client.options.VAxis;

public class HelloWorld implements EntryPoint {
   private LineChart chart;

   private void initialize() {
      ChartLoader chartLoader = new ChartLoader(ChartPackage.CORECHART);
      chartLoader.loadApi(new Runnable() {
         public void run() {
            // Create and attach the chart
            chart = new LineChart();
            RootPanel.get().add(chart);
            draw();
         }
      });
   }
   private void draw() {
      // Prepare the data
      DataTable data = DataTable.create();
      data.addColumn(ColumnType.STRING, "Month");
      data.addColumn(ColumnType.NUMBER, "Tokyo");
      data.addColumn(ColumnType.NUMBER, "New York");
      data.addColumn(ColumnType.NUMBER, "Berlin");
      data.addColumn(ColumnType.NUMBER, "Berlin");

      data.addRow("Jan",  7.0, -0.2, -0.9, 3.9);
      data.addRow("Feb",  6.9, 0.8, 0.6, 4.2);
      data.addRow("Mar",  9.5,  5.7, 3.5, 5.7);
      data.addRow("Apr",  14.5, 11.3, 8.4, 8.5);
      data.addRow("May",  18.2, 17.0, 13.5, 11.9);
      data.addRow("Jun",  21.5, 22.0, 17.0, 15.2);
      data.addRow("Jul",  25.2, 24.8, 18.6, 17.0);
      data.addRow("Aug",  26.5, 24.1, 17.9, 16.6);
      data.addRow("Sep",  23.3, 20.1, 14.3, 14.2);
      data.addRow("Oct",  18.3, 14.1, 9.0, 10.3);
      data.addRow("Nov",  13.9,  8.6, 3.9, 6.6);
      data.addRow("Dec",  9.6,  2.5,  1.0, 4.8);

      // Set options
      LineChartOptions options = LineChartOptions.create();
      options.setTitle("Average Temperatures of Cities");
      options.setHAxis(HAxis.create("Month"));
      options.setVAxis(VAxis.create("Temperature"));

      Crosshair crosshair = Crosshair.create();
      crosshair.setColor("#000000");
      crosshair.setTrigger(CrosshairTrigger.SELECTION);
      options.setCrosshair(crosshair);

      // Draw the chart
      chart.draw(data,options);
      chart.setWidth("400px");
      chart.setHeight("400px");
   }
   public void onModuleLoad() {
      initialize();
   }
}

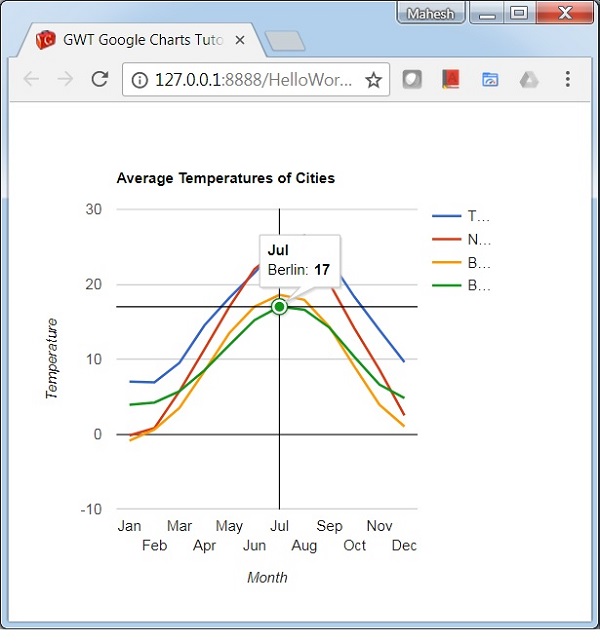

结果

验证结果。
