GWT - 菜单栏小部件

介绍

MenuBar 小部件表示标准的菜单栏小部件。菜单栏可以包含任意数量的菜单项，每个菜单项可以触发命令或打开级联菜单栏。

类声明

以下是 com.google.gwt.user.client.ui.MenuBar 类的声明：

public class MenuBar
   extends Widget
      implements PopupListener, HasAnimation,
	     HasCloseHandlers<PopupPanel>

CSS 样式规则

以下默认 CSS 样式规则将应用于所有 MenuBar 小部件。您可以根据需要覆盖它。

.gwt-MenuBar {}

.gwt-MenuBar-horizontal {}

.gwt-MenuBar-vertical{}

.gwt-MenuBar .gwt-MenuItem {}

.gwt-MenuBar .gwt-MenuItem-selected {}

.gwt-MenuBar .gwt-MenuItemSeparator {}

.gwt-MenuBar .gwt-MenuItemSeparator .menuSeparatorInner {}

.gwt-MenuBarPopup .menuPopupTopLeft {}

.gwt-MenuBarPopup .menuPopupTopLeftInner {}

.gwt-MenuBarPopup .menuPopupTopCenter {}

.gwt-MenuBarPopup .menuPopupTopCenterInner {}

.gwt-MenuBarPopup .menuPopupTopRight {}

.gwt-MenuBarPopup .menuPopupTopRightInner {}

.gwt-MenuBarPopup .menuPopupMiddleLeft {}

.gwt-MenuBarPopup .menuPopupMiddleLeftInner {}

.gwt-MenuBarPopup .menuPopupMiddleCenter {}

.gwt-MenuBarPopup .menuPopupMiddleCenterInner {}

.gwt-MenuBarPopup .menuPopupMiddleRight {}

.gwt-MenuBarPopup .menuPopupMiddleRightInner {}

.gwt-MenuBarPopup .menuPopupBottomLeft {}

.gwt-MenuBarPopup .menuPopupBottomLeftInner {}

.gwt-MenuBarPopup .menuPopupBottomCenter {}

.gwt-MenuBarPopup .menuPopupBottomCenterInner {}

.gwt-MenuBarPopup .menuPopupBottomRight {}

.gwt-MenuBarPopup .menuPopupBottomRightInner {}

类构造函数

类方法

继承的方法

此类继承自以下类的方法：

• com.google.gwt.user.client.ui.UIObject

• com.google.gwt.user.client.ui.Widget

• java.lang.Object

MenuBar 小部件示例

此示例将引导您完成简单的步骤，以演示如何在 GWT 中使用 MenuBar 小部件。请按照以下步骤更新我们在GWT - 创建应用程序章节中创建的 GWT 应用程序：

以下是修改后的模块描述符src/com.tutorialspoint/HelloWorld.gwt.xml的内容。

<?xml version = "1.0" encoding = "UTF-8"?>
<module rename-to = 'helloworld'>
   <!-- Inherit the core Web Toolkit stuff.                        -->
   <inherits name = 'com.google.gwt.user.User'/>

   <!-- Inherit the default GWT style sheet.                       -->
   <inherits name = 'com.google.gwt.user.theme.clean.Clean'/>

   <!-- Specify the app entry point class.                         -->
   <entry-point class = 'com.tutorialspoint.client.HelloWorld'/>

   <!-- Specify the paths for translatable code                    -->
   <source path = 'client'/>
   <source path = 'shared'/>

</module>

以下是修改后的样式表文件war/HelloWorld.css的内容。

body {
   text-align: center;
   font-family: verdana, sans-serif;
}

h1 {
   font-size: 2em;
   font-weight: bold;
   color: #777777;
   margin: 40px 0px 70px;
   text-align: center;
}

.gwt-MenuBar {
   cursor: default;
}

.gwt-MenuBar .gwt-MenuItem {
   cursor: default;
   font-family: Arial Unicode MS, Arial, sans-serif;
   font-size: 12px;
}

.gwt-MenuBar .gwt-MenuItem-selected {
   background: #E3E8F3;
}

.gwt-MenuBar-horizontal {
   background: #e3e8f3 url(images/hborder.png) repeat-x 0px -2003px;
   border: 1px solid #e0e0e0;
}

.gwt-MenuBar-horizontal .gwt-MenuItem {
   padding: 5px 10px;
   vertical-align: bottom;
   color: #000;
   font-weight: bold;
}

.gwt-MenuBar-horizontal .gwt-MenuItemSeparator {
   width: 1px;
   padding: 0px;
   margin: 0px;
   border: 0px;
   border-left: 1px solid #ccc;
   background: white;
}

.gwt-MenuBar-horizontal .gwt-MenuItemSeparator .menuSeparatorInner {
   width: 1px;
   height: 1px;
   background: white;
}

.gwt-MenuBar-vertical {
   margin-top: 0px;
   margin-left: 0px;
   background: white;
}

.gwt-MenuBar-vertical table {
   border-collapse: collapse;
}

.gwt-MenuBar-vertical .gwt-MenuItem {
   padding: 2px 40px 2px 1px;
}

.gwt-MenuBar-vertical .gwt-MenuItemSeparator {
   padding: 2px 0px;
}

.gwt-MenuBar-vertical .gwt-MenuItemSeparator .menuSeparatorInner {
   height: 1px;
   padding: 0px;
   border: 0px;
   border-top: 1px solid #ccc;
   overflow: hidden;
}

.gwt-MenuBar-vertical .subMenuIcon {
   padding-right: 4px;
}

.gwt-MenuBar-vertical .subMenuIcon-selected {
   background: #E3E8F3;
}

.gwt-MenuBarPopup {
   margin: 0px 0px 0px 3px;
}

.gwt-MenuBarPopup .menuPopupTopLeftInner {
   width: 5px;
   height: 5px;
   zoom: 1;
}

.gwt-MenuBarPopup .menuPopupTopRightInner {
   width: 8px;
   height: 5px;
   zoom: 1;
}

.gwt-MenuBarPopup .menuPopupBottomLeftInner {
   width: 5px;
   height: 8px;
   zoom: 1;
}

.gwt-MenuBarPopup .menuPopupBottomRightInner {
   width: 8px;
   height: 8px;
   zoom: 1;
}

.gwt-MenuBarPopup .menuPopupTopLeft {
   background: url(images/corner.png) no-repeat 0px -36px;
   -background: url(images/corner_ie6.png) no-repeat 0px -36px;
}

.gwt-MenuBarPopup .menuPopupTopRight {
   background: url(images/corner.png) no-repeat -5px -36px;
   -background: url(images/corner_ie6.png) no-repeat -5px -36px;
}

.gwt-MenuBarPopup .menuPopupBottomLeft {
   background: url(images/corner.png) no-repeat 0px -41px;
   -background: url(images/corner_ie6.png) no-repeat 0px -41px;
}

.gwt-MenuBarPopup .menuPopupBottomRight {
   background: url(images/corner.png) no-repeat -5px -41px;
   -background: url(images/corner_ie6.png) no-repeat -5px -41px;
}

html > body .gwt-MenuBarPopup {
}

* html .gwt-MenuBarPopup .menuPopupTopLeftInner {
   width: 5px;
   height: 5px;
   overflow: hidden;
}

* html .gwt-MenuBarPopup .menuPopupTopRightInner {
   width: 8px;
   height: 5px;
   overflow: hidden;
}

* html .gwt-MenuBarPopup .menuPopupBottomLeftInner {
   width: 5px;
   height: 8px;
   overflow: hidden;
}

* html .gwt-MenuBarPopup .menuPopupBottomRightInner {
   width: 8px;
   height: 8px;
   overflow: hidden;
}

以下是修改后的 HTML 宿主文件war/HelloWorld.html的内容。

<html>
   <head>
      <title>Hello World</title>
      <link rel = "stylesheet" href = "HelloWorld.css"/>
      <script language = "javascript" src = "helloworld/helloworld.nocache.js">
      </script>
   </head>

   <body>
      <h1>MenuBar Widget Demonstration</h1>
      <div id = "gwtContainer"></div>
   </body>
</html>

让我们看看 Java 文件src/com.tutorialspoint/HelloWorld.java的内容，它将演示 MenuBar 小部件的使用。

package com.tutorialspoint.client;

import com.google.gwt.core.client.EntryPoint;
import com.google.gwt.user.client.Command;
import com.google.gwt.user.client.Window;
import com.google.gwt.user.client.ui.MenuBar;
import com.google.gwt.user.client.ui.MenuItem;
import com.google.gwt.user.client.ui.RootPanel;

public class HelloWorld implements EntryPoint {

   private void showSelectedMenuItem(String menuItemName){
      Window.alert("Menu item: "+menuItemName+" selected");
   }

   public void onModuleLoad() {

      // Create a menu bar
      MenuBar menu = new MenuBar();
      menu.setAutoOpen(true);
      menu.setWidth("100px");
      menu.setAnimationEnabled(true);

      // Create the file menu
      MenuBar fileMenu = new MenuBar(true);
      fileMenu.setAnimationEnabled(true);

      fileMenu.addItem("New", new Command() {
         @Override
         public void execute() {
            showSelectedMenuItem("New");
         }
      });

      fileMenu.addItem("Open", new Command() {
         @Override
         public void execute() {
            showSelectedMenuItem("Open");
         }
      });

      fileMenu.addSeparator();
      fileMenu.addItem("Exit", new Command() {
         @Override
         public void execute() {
            showSelectedMenuItem("Exit");
         }
      });

      // Create the edit menu
      MenuBar editMenu = new MenuBar(true);
      editMenu.setAnimationEnabled(true);

      editMenu.addItem("Undo", new Command() {
         @Override
         public void execute() {
            showSelectedMenuItem("Undo");
         }
      });

      editMenu.addItem("Redo", new Command() {
         @Override
         public void execute() {
            showSelectedMenuItem("Redo");
         }
      });

      editMenu.addItem("Cut", new Command() {
         @Override
         public void execute() {
            showSelectedMenuItem("Cut");
         }
      });

      editMenu.addItem("Copy", new Command() {
         @Override
         public void execute() {
            showSelectedMenuItem("Copy");
         }
      });

      editMenu.addItem("Paste", new Command() {
      @Override
         public void execute() {
            showSelectedMenuItem("Paste");
         }
      });

      menu.addItem(new MenuItem("File", fileMenu));
      menu.addSeparator();
      menu.addItem(new MenuItem("Edit", editMenu));

      //add the menu to the root panel
      RootPanel.get("gwtContainer").add(menu);
   }
}

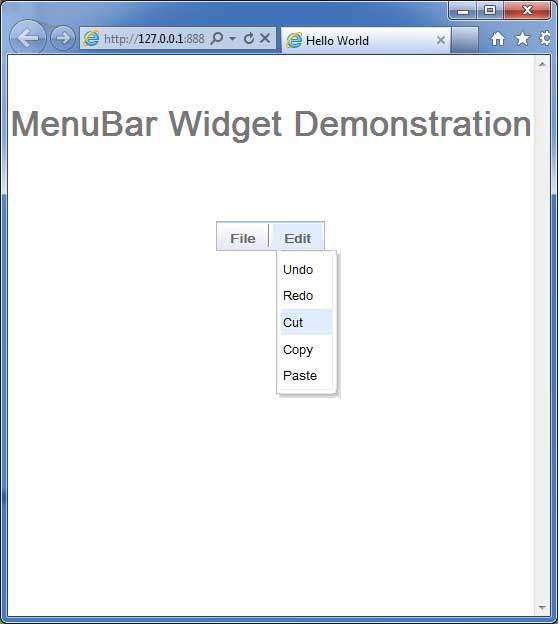

准备好所有更改后，让我们像在GWT - 创建应用程序章节中那样在开发模式下编译并运行应用程序。如果应用程序一切正常，则会产生以下结果：

选择菜单栏中的任何值，都会弹出显示所选值的警报消息。
