Flex - 单选按钮控件

简介

单选按钮控件允许用户在一组互斥的选择中做出单一选择。

类声明

以下是spark.components.RadioButton类的声明：

public class RadioButton
   extends ToggleButtonBase
      implements IFocusManagerGroup

公共属性

公共方法

继承的方法

此类继承自以下类的方法：

• spark.components.supportClasses.ToggleButtonBase
• spark.components.supportClasses.ButtonBase
• spark.components.supportClasses.SkinnableComponent
• mx.core.UIComponent
• mx.core.FlexSprite
• flash.display.Sprite
• flash.display.DisplayObjectContainer
• flash.display.InteractiveObject
• flash.display.DisplayObject
• flash.events.EventDispatcher
• Object

Flex 单选按钮控件示例

让我们按照以下步骤，通过创建一个测试应用程序来检查在 Flex 应用程序中使用RadioButton控件：

以下是修改后的 mxml 文件src/com.tutorialspoint/HelloWorld.mxml的内容。

<?xml version = "1.0" encoding = "utf-8"?>
<s:Application xmlns:fx = "http://ns.adobe.com/mxml/2009"
   xmlns:s = "library://ns.adobe.com/flex/spark"
   xmlns:mx = "library://ns.adobe.com/flex/mx"
   width = "100%" height = "100%" minWidth = "500" minHeight = "500">

   <fx:Style source = "/com/tutorialspoint/client/Style.css" />
   <fx:Script>
      <![CDATA[
         [Bindable]
         private var selectedOption:String = "";
         protected function option_clickHandler(event:MouseEvent):void {
            var radioButton:RadioButton = event.target as RadioButton;
            switch (radioButton.id) {
               case option1.id:
                  selectedOption = option1.label;
                  break;
               case option2.id:
                  selectedOption = option2.label;
                  break;
               case option3.id:
                  selectedOption = option3.label;
                  break;
               case option4.id:
                  selectedOption = option4.label;
                  break;
            }
         }
      ]]>
   </fx:Script>

   <s:BorderContainer width = "550" height = "400" id = "mainContainer"
      styleName = "container">
      <s:VGroup width = "100%" height = "100%" gap = "50"
         horizontalAlign = "center" verticalAlign = "middle">
         <s:Label id = "lblHeader" text = "Form Controls Demonstration"
            fontSize = "40" color = "0x777777" styleName = "heading" />

         <s:Panel id = "radioButtonPanel" title = "Using RadioButton"
            width = "420" height = "200" >
            <s:layout>
               <s:VerticalLayout  gap = "10" verticalAlign = "middle"
                  horizontalAlign = "center" />
            </s:layout>

            <s:RadioButton groupName = "options" id = "option1"
               label = "item #1" width="150"
               click = "option_clickHandler(event)" />
            <s:RadioButton groupName = "options" id = "option2"
               label = "item #2" width="150"
               click = "option_clickHandler(event)" />
            <s:RadioButton groupName = "options" id = "option3"
               label = "item #3" width="150"
               click = "option_clickHandler(event)" />
            <s:RadioButton groupName = "options" id = "option4"
               label = "item #4" width = "150"
               click = "option_clickHandler(event)" />
            <s:Label id = "selectedOptionLabel" fontWeight = "bold"
               text = "Item selected: {selectedOption}" width = "150" />
         </s:Panel>
      </s:VGroup>
   </s:BorderContainer>
</s:Application>

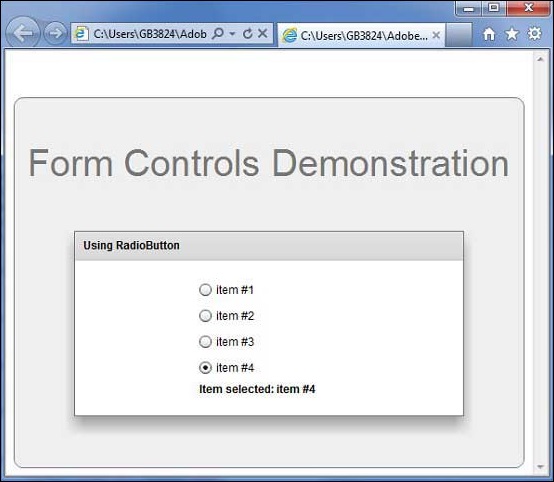

完成所有更改后，让我们像在Flex - 创建应用程序章节中一样，在普通模式下编译并运行应用程序。如果您的应用程序一切正常，它将产生以下结果：[ 在线尝试 ]
