Silverlight - 单选按钮

RadioButton（单选按钮）是一种按钮，允许用户从一组选项中选择一个选项。用户只能从相关的选项列表中选择一个选项，这些选项是互斥的。它只有两个选项：

• 选中
• 清除

RadioButton 也派生自 ToggleButton，并使用相同的 IsChecked 属性以及相同的 Checked、Unchecked 和 Indeterminate 事件。除此之外，RadioButton 还添加了一个名为 GroupName 的属性，允许您控制单选按钮如何分组。

• 通常，单选按钮由其容器分组。这意味着，如果您将三个 RadioButton 控件放置在一个 StackPanel 中，它们将形成一个组，从中您只能选择三个中的一个。

• 另一方面，如果您将单选按钮的组合放置在两个单独的 StackPanel 控件中，则您将有两个独立的组。

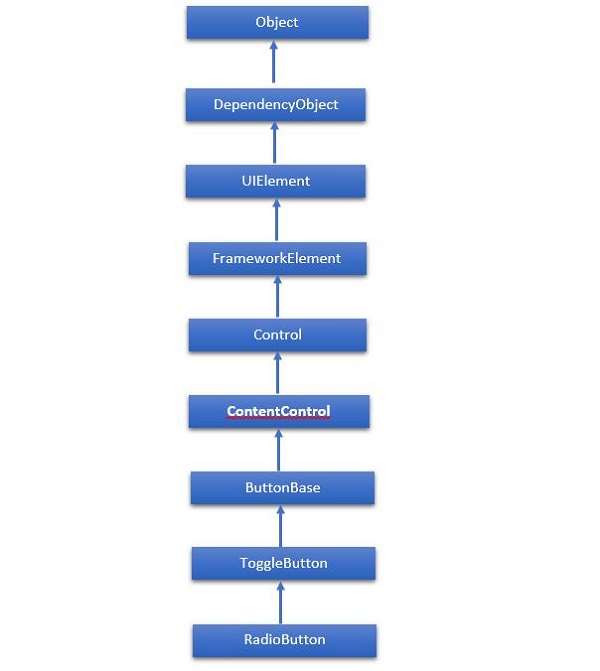

RadioButton 类的层次继承如下：

以下是 RadioButton 最常用的属性。

以下是 RadioButton 最常用的方法。

以下是 RadioButton 最常用的事件。

示例

让我们来看一个简单的示例，其中包含不同的按钮。

<UserControl x:Class = "Buttons.MainPage"
   xmlns = "http://schemas.microsoft.com/winfx/2006/xaml/presentation"
   xmlns:x = "http://schemas.microsoft.com/winfx/2006/xaml"
   xmlns:d = "http://schemas.microsoft.com/expression/blend/2008"
   xmlns:mc = "http://schemas.openxmlformats.org/markup-compatibility/2006"
   mc:Ignorable = "d"
   d:DesignHeight = "300" d:DesignWidth = "400">

   <StackPanel x:Name = "LayoutRoot" Background = "White">
      <Button x:Name = "button" Content = "Click Me" HorizontalAlignment = "Left"
         Margin = "10" VerticalAlignment = "Top" Width = "75"/>

      <StackPanel>

         <Border Margin = "5" Padding = "5" BorderBrush = "Yellow" BorderThickness = "1"
            CornerRadius = "5">

            <StackPanel>
               <RadioButton Content = "Group 1"/>
               <RadioButton Content = "Group 1"/>
               <RadioButton Content = "Group 1"/>
               <RadioButton GroupName = "Group3" Content = "Group 3"/>
            </StackPanel>

         </Border>

         <Border Margin = "5" Padding = "5" BorderBrush = "Yellow" BorderThickness = "1"
            CornerRadius = "5">

            <StackPanel>
               <RadioButton Content = "Group 2"/>
               <RadioButton Content = "Group 2"/>
               <RadioButton Content = "Group 2"/>
               <RadioButton GroupName = "Group3" Content = "Group 3"/>
            </StackPanel>
         </Border>

      </StackPanel>

      <CheckBox x:Name = "checkBox1" Content = "Two States" HorizontalAlignment = "Left"
         VerticalAlignment = "Top" Checked = "HandleCheck" Margin = "10,0,0,0"
         Unchecked = "HandleUnchecked" Width = "90"/>

      <CheckBox x:Name = "checkBox2" Content = "Three States" HorizontalAlignment = "Left"
         VerticalAlignment = "Top" Width = "90" IsThreeState = "True" Margin = "10,0,0,0"
         Indeterminate = "HandleThirdState" Checked = "HandleCheck"
         Unchecked = "HandleUnchecked"/>

      <TextBox x:Name = "textBox1" HorizontalAlignment = "Left" Margin = "10,0,0,0"
         TextWrapping = "Wrap" VerticalAlignment = "Top" Width = "300"/>

      <TextBox x:Name = "textBox2" HorizontalAlignment = "Left"
         Margin = "10,0,0,0" Height = "23" TextWrapping = "Wrap"
         VerticalAlignment = "Top" Width = "300"/>

   </StackPanel>

</UserControl>

这里有两个容器包含单选按钮，但有三个组。每个组框底部的最后一个单选按钮是第三个组的一部分。还有两个状态和三个状态的复选框。

以下是 事件实现 的 C# 代码。

using System.Windows;
using System.Windows.Controls;

namespace Buttons {

   public partial class MainPage : UserControl {

      public MainPage() {
         InitializeComponent();
      }

      private void HandleCheck(object sender, RoutedEventArgs e) {
         CheckBox cb = sender as CheckBox;

         if (cb.Name == "checkBox1") textBox1.Text = "2 state CheckBox is checked.";
         else textBox2.Text = "3 state CheckBox is checked.";
      }

      private void HandleUnchecked(object sender, RoutedEventArgs e) {
         CheckBox cb = sender as CheckBox;

         if (cb.Name == "checkBox1") textBox1.Text = "2 state CheckBox is unchecked.";
         else textBox2.Text = "3 state CheckBox is unchecked.";
      }

      private void HandleThirdState(object sender, RoutedEventArgs e) {
         CheckBox cb = sender as CheckBox;
         textBox2.Text = "3 state CheckBox is in indeterminate state.";
      }

   }
}

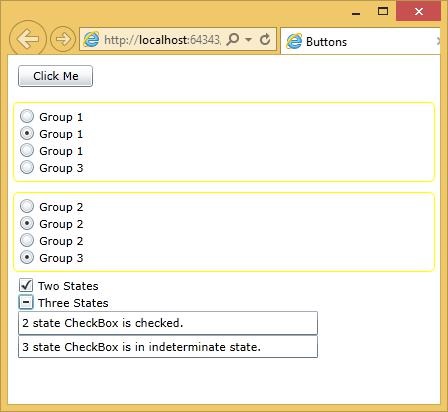

当编译并执行上述代码时，将显示以下网页。
